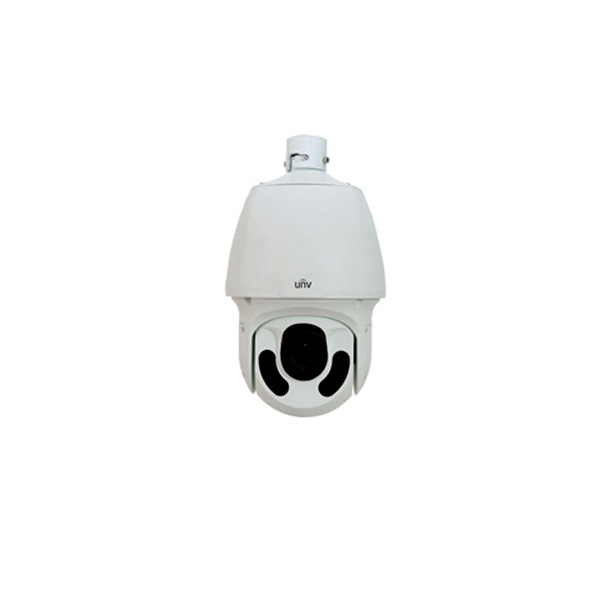

NETWORK CAMERA
IPC6221LR-X20S(P)
IPC6221LR-X20S
IPC6221LR-X20SP
Camera
Sensor
1/3″, 1.3 Megapixel, progressive scan, CMOS
Lens
4.7 ~ 94 mm (20x optical zoom)
Angle of View (H)
59.7° (wide) ~ 3.8° (tele)
Iris
Auto/Manual; F1.6 ~ F3.3
Shutter
Auto/Manual; shutter time: 1/15 s ~ 1/10000 s
Minimum Illumination
Color: 0.03 lux (F1.6, 50IRE)
B/W: 0.01 lux (F1.6, 50IRE)
S/N
>50dB
Day/Night
IR-cut filter with auto switch (ICR)
Video
Max. Resolution
1280 × 960
Video Compression
H.264,MJPEG
Frame Rate
960P (1280×960):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.25 fps
Video Streaming
Triple
OSD
Up to 8 OSDs
Privacy Mask
Up to 8 areas
Digital Zoom
Supported
Network
Protocols
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP
Compatible Integration
ONVIF, IMOS,API
Pan & Tilt
Pan Range
360° (endless)
Pan Speed
0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range
–15° ~ +90° (auto reverse)
Tilt Speed
0.1° ~ 160°/s
Preset speed: 240°/s
Number of Preset
256
Patrol
Up to 16 patrols, up to 32 presets per patrol
Note: The total number of patrols and patterns is 16.
Pattern
Up to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Network
10M/100M Base-TX Ethernet
General
Power Supply
24 V AC, 24 V DC
24 V AC, 24 V DC, PoE
Power consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W)
Dimensions (Ø x H)
Ø227 x 359.4 mm (Ø8.9” x 14.2”)
Weight
5.28 kg (11.6 lb)
Working Environment
–40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection
IP66
